Katalog 2020-210.pdf
Katalog 2020-210

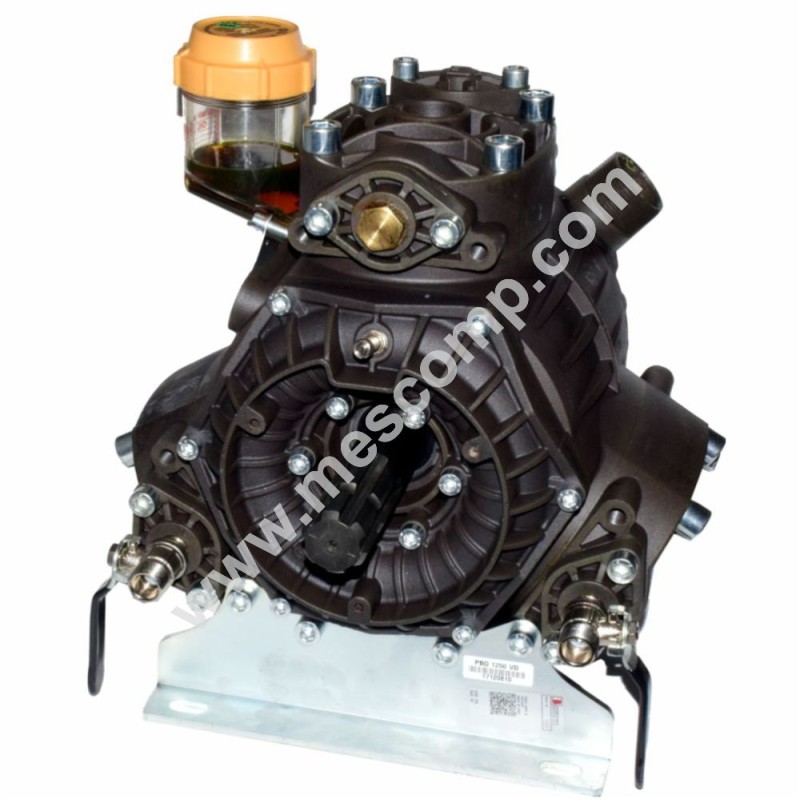

Manufacturer: | Bertolini |
---|---|
Catalog number: | PBO 1100 VD |
Pump type: | Diaphragm | |
Number of piston: | 3 | |
Pump capacity: | 110 l/min | |
Maximum pressure: | 50 Bar | |
Metal elements: | AISI 316 Inox | |
Screws: | Dacromet technology | |
Diaphragm: | Desmopan polyurethane | |
Shaft: | Typical single-sided 6-groove 1 3/8" | |
Maximum rotation: | 550 rpm | |
Maximum power: | 13.9 HP (10.4 kW) | |
Negative pressure: | 1.5 - 3 m | |
Suction hosetail: | 40 mm | |
Pressure hosetail: | G 3/4" | |
Maximum working temperature: | 60 °C | |
Oil type: | SAE 30 | |
Oil quantity: | 1.0 l | |
Weight: | 25.3 kg | |
Width: | -- mm | |
Depth: | 343 mm | |
Height: | 360 mm |
