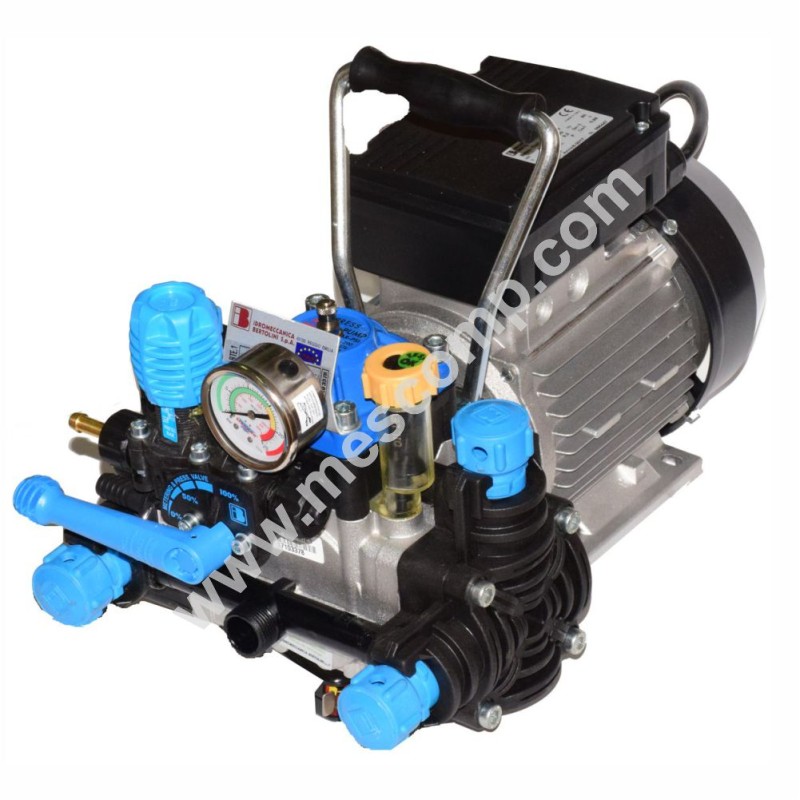

Bertolini pumps of the Poly 2020 series are protected against all corrosive substances and are perfectly suited for lime bleaching.
Manufacturer: | Bertolini |
---|---|
Catalog number: | Poly 2020 RTE |
Pump type: | Diaphragm | |
Number of piston: | 2 | |
Pump capacity: | 22 l/min | |
Maximum pressure: | 15 Bar | |
Power: | 230 V AC | |
Pressure regulator: | YES | |
By-Pass valve: | YES | |
Metal elements: | AISI 316 Inox | |
Screws: | Dacromet technology | |
Diaphragm: | Rubber | |
Maximum rotation: | 650 rpm | |
Maximum power: | 1.1 HP (0.8 kW) | |
Negative pressure: | 1 m | |
Suction hosetail: | 20 mm | |
Pressure hosetail: | 8 mm" | |
Maximum working temperature: | 60 °C | |
Oil type: | SAE 30 | |
Oil quantity: | 0.7 l |
