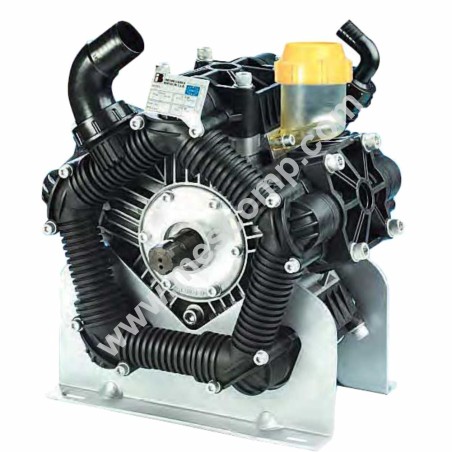

| Manufacturer: | Bertolini |
|---|---|
| Catalog number: | Poly 2210 VD |
| Pump type: | Diaphragm | |
| Number of piston: | 5 | |
| Pump capacity: | 210 l/min | |
| Maximum pressure: | 15 Bar | |
| Metal elements: | AISI 316 Inox | |
| Head: | Double injection of aluminum and polypropylene | |
| Collectors: | Polypropylene | |
| Screws: | Dacromet technology | |
| Diaphragm: | Desmopan polyurethane or Duramax | |
| Shaft: | Typical single-sided 6-groove 1 3/8" | |
| Maximum rotation: | 550 rpm | |
| Maximum power: | 8.0 HP (6.0 kW) | |
| Negative pressure: | 1.5 - 3 m | |
| Suction hosetail: | 50 mm | |
| Pressure hosetail: | 25 mm | |
| Maximum working temperature: | 60 °C | |
| Oil type: | SAE 30 | |
| Oil quantity: | 3.25 l | |
| Weight: | 33 kg | |
| Width: | 400 mm | |
| Depth: | 308 mm | |
| Height: | 417 mm | |
