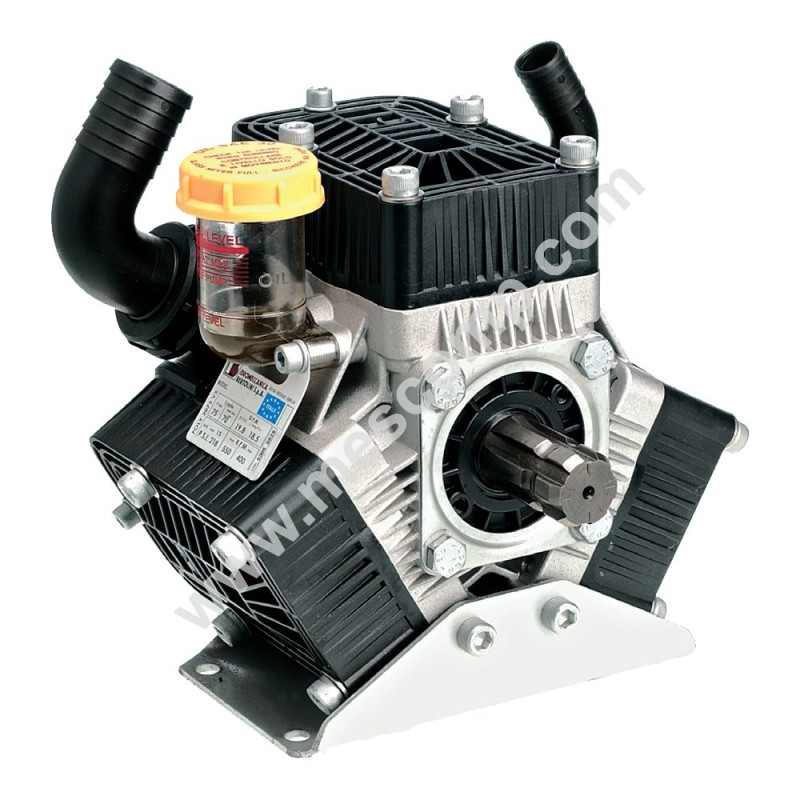

| Manufacturer: | Bertolini |
|---|---|
| Catalog number: | Poly 2100 VS |
| Pump type: | Diaphragm | |
| Number of piston: | 3 | |
| Pump capacity: | 100 l/min | |
| Maximum pressure: | 15 Bar | |
| Metal elements: | AISI 316 Inox | |
| Head: | Double injection of aluminum and polypropylene | |
| Collectors: | Polypropylene | |
| Screws: | Dacromet technology | |
| Diaphragm: | Desmopan polyurethane or Duramax | |
| Shaft: | Typical single-sided 6-groove 1 3/8" | |
| Maximum rotation: | 550 rpm | |
| Maximum power: | 3.2 HP (2.4 kW) | |
| Negative pressure: | 1.5 - 3 m | |
| Suction hosetail: | 35 mm | |
| Pressure hosetail: | 25 mm | |
| Maximum working temperature: | 60 °C | |
| Oil type: | SAE 30 | |
| Oil quantity: | 0.7 l | |
| Weight: | 11 kg | |
| Width: | 286 mm | |
| Depth: | 240 mm | |
| Height: | 260 mm | |
