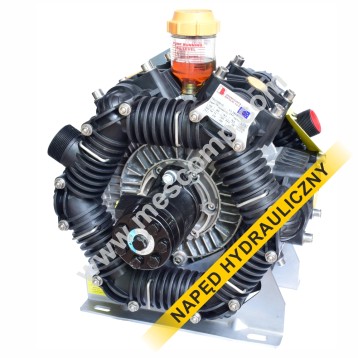

| Manufacturer: | Altek, Rau, Kverneland, Amazone |
|---|---|
| Catalog number: | P380 |
| Pump type: | Diaphragm | |
| Number of piston: | 6 | |
| Pump capacity: | 380 l/min | |
| Maximum pressure: | 15 Bar | |
| Maximum short-term pressure: | 20 Bar | |
| Body material | Aluminum | |
| Head material: | Anodised aluminium | |
| Diaphragma material: | Polyurethane Duramax | |
| Shaft: | Typical single-sided 6-groove 1 3/8" | |
| Typical rotation | 540 rpm | |
| Range of rotation: | 450-600 rpm | |
| Maximum power: | 15.9 HP (12.0 kW) | |
| Suction houstail: | 2 x G 2 1/2" | |
| Prssure hosetail: | 2 x A 40 | |
| Oil type: | ||
| Oil quantity: | ||
| Weight: | 47 kg | |
| Width: | 300 mm | |
| Depth: | 456 mm | |
| Height: | 362 mm | |
